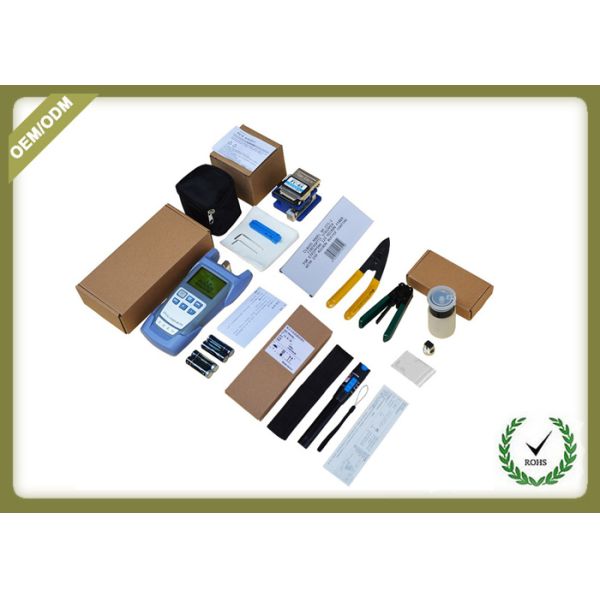

Full Set FTTH Tool Kit With Fiber Optic Cleaver FC - 6S / Optical Power Meter

Full set FTTH fiber optic splicing tools kit with fiber optic cleaver FC-6S and Optical Power Meter

Product description

This ftth tool kit include following items:

optical power meter 5km

• Calibration wavelength: 800 ~ 1700nm
• Measuring range: -70 ~ +3dBm
• Linearity: 0.01dB
• Display resolution: 0.01dB
• Wave ID: 850, 980, 1300, 1310, 1490, 1550, 1625 nm
• Power Adapter: 9V/1000mA
• Working time: 40h
• Working temperature: -10 ~ 60 centigrade
• Storage temperature: -25 ~ 70 Celsius
• Power Supply: 3 x AA Battery (Not Included)

optical pen 5km:

• Imported laser head, High thermal conductivity
• Aluninum alloy case, good durability
• the ceramic die can be replaced

FC-6S Fiber cleaver:

• Fiber diameter: 125um
• Coating diameter: 250um – 900um
• Typical splitter angle: 0.5 degrees
• Adjust the peeling length is: 5~20mm
• Length of the slit: 10mm
• Blade Lifetime: 36,000 columns (3,000 per blade position)

Double mouth Miller Pliers

• 250 um coated layer of 125 um fiber with A.
• Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath
• The open hole of the type V and 140 um on the edge of the
• Clamp can be used to strip the 250 um layer of 125 um fiber
• Jaw factory has been adjusted, shall not be adjusted
• Will not damage the fiber
• A ll the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation
• According to the handle ergonomic design, comfort grip
• Does not use the blade, locked in a closed state

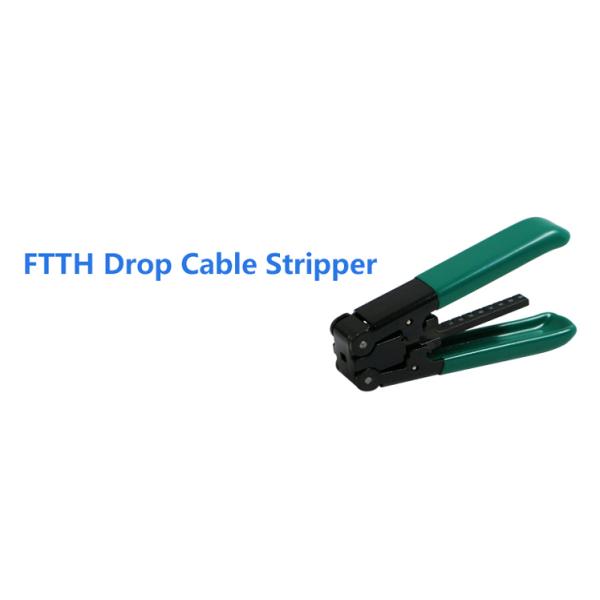

Wire stripper

• The use of temperature is -20 ° C ~ 50 °C
• Factory pre-set, no need to adjust this stripper again to prevent fiber scratch; cutting blade precision positioning, quenching and tempering treatment, anti-rust primer.
• If not use, set the blade lock in the closed state.
• For stripping 250 micron buffer coating to expose 125 micron cladded fiber
• Second hole for stripping 2-3mm fiber jackets
• 140 μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
• Pre-set at the factory – no adjustments needed
• Will not scratch or nick glass fiber
• All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips Comfort-grip, ergonomic handles

Squeezed type alcohol bottle and other Accessories

FUll Set
